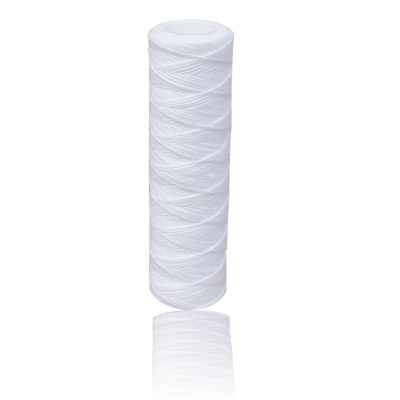

Wirewound filter

  • 线绕滤芯

    Matertals Structure:
    ▼The filtrating core is ,ade up of pp textile fibers,and circlingbased on specific density,then filtrating hole coming into being,the fibers circles the frame strucre of multi-hole pp.
    Filtrare Precise:
    ▼0.5–100 μm  (nominal precise)
    Features:
    ▼Low cost,deep filtrate,large flux,Wide chemical acceptance,long usage life,can effectively remove the suspending granule,rusts.
    Working Condition
    ▼Working Temperature:＜60℃
    ▼Working Differential Pressure:≤0.2mpa~≤0.5mpa(compression resistance)
    ▼Flux:1T-2T/h(under0.2Mpa)
    Models
    ▼Outside diameter:ф60–ф65,it can be customized,
    ▼Inside diameter:ф28–ф30
    ▼Length:5″、10″、20″、30″、40,it can [...]

  • 线绕滤芯

    该滤芯是采用聚丙烯（PP）纺织纤维粗纱，按特定密度设定各种不同的线排列程序，形成滤孔，精密地缠绕在多孔聚丙烯
    （PP）骨架或不锈钢骨架上制成。
